Part # : 19BX60

At-A-Glance™ Liquid Level Gauge for 550 Gallon Tank, 2" NPT (D-2-65)

Part # : 19BX60

At-A-Glance™ Liquid Level Gauge for 550 Gallon Tank, 2" NPT (D-2-65)

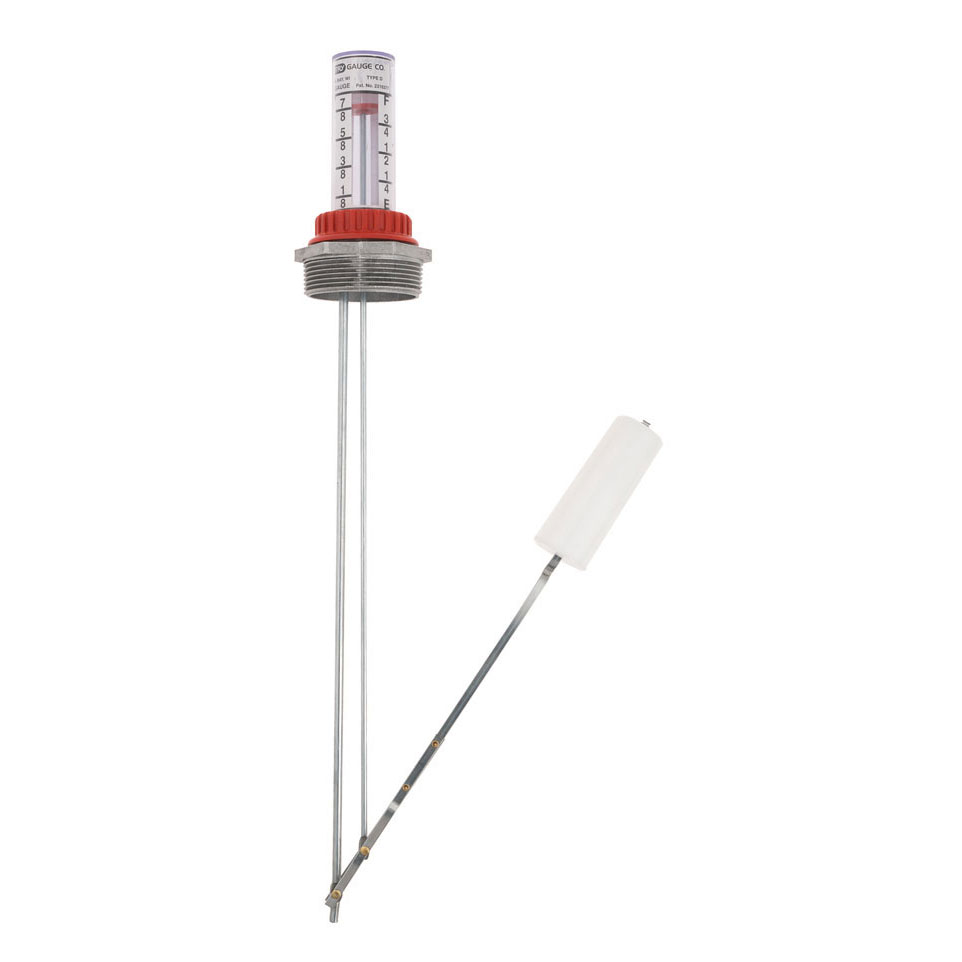

The 19BX60 is a 65" Tank Depth Top Mounted Standard At-A-Glance™ Type D (Direct Reading) Liquid Level Gauge with a 2" NPT opening for 550 Gallon IBC Tote Tanks. The base construction is galvanized wetted rods with HDPE Floats. Plastic Calibration, HDPE Lock Nut, Duro Nitrile Gasket, Aluminum Bushing, Galvanized Steel Rods, HDPE Floats. Other options are available for increased compatibility with various liquids. This gauge is a simple volume reading tool. The top of the red indicator is an indication of your approximate fuel level in your tank. Once installed, you simply view the calibration to monitor your tank level. Indicator is calibrated in eighths of a tank on one side, and quarters of a tank on the other.
Product Specifications
  • Quantity Qty Price
  • 1 $74.460  ea.
  • Pallet Pack: 100 ea.

Interested in larger quantities?

Request a Quote
Call Us: (630) 629-6600

Specifications
The At-A-Glance™ Type D Liquid Level Gauge is a reliable, swing arm type tank gauge used for measuring all types of liquid levels. This sight gauges simple mechanical design promotes durability, minimal upkeep, quick installation, and easy/inexpensive repairs. This liquid level gauge is custom made to fit your tank. We can accommodate any size tank from 6 inches to 12 feet in depth, we can also account for double walls and pipe risers, and we offer multiple materials of construction to accommodate nearly any type of liquid.

Key benefits:
  • Material: Plastic Calibration, HDPE Lock Nut, Duro Nitrile Gasket, Aluminum Bushing, Galvanized Steel Rods, HDPE Floats
  • Easy to use
  • Accurately measures the depth of liquid
  • Brass riveted assembly

Downloads:

Chemical Compatibility Chart

Liquid Level Gauge Owners Manual

Disclaimer:

This information has been provided as a general guide. It is the customer's responsibility to select the proper container for product and application compatibility.

Please note, this item is excluded from online promotions.

Additional Information

More Information
GasketNitrile (Buna-N)
Pallet Pack100 ea.
Country of ManufactureUnited States
ModelD-2-65
Tank Depth65" - 550 Gallon IBC
Opening Size2" NPT
Rod MaterialGalvanized Steel
Bushings MaterialAluminum
Float MaterialHDPE
CalibrationPlastic Calibration
