Part # : 19BX74

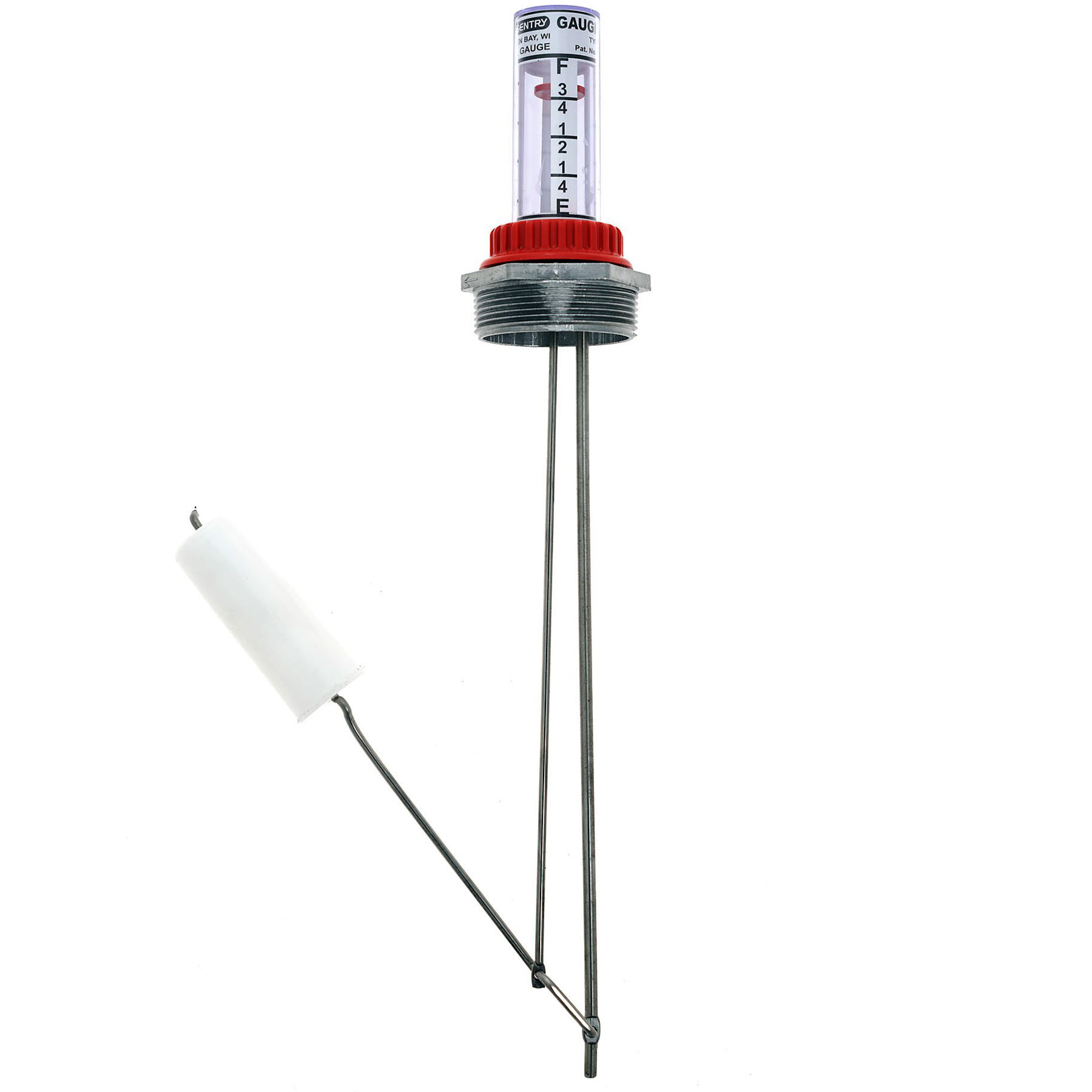

At-A-Glance™ Stainless Steel Liquid Level Gauge for 550 Gallon Tank, 2" NPT (D-2-65-S1)
The 19BX74 is a 65" Tank Depth Top Mounted Standard At-A-Glance™ Type D (Direct Reading) Stainless Steel (level one) Liquid Level Gauge with a 2" NPT opening for 550 Gallon IBC Tote Tanks. The base construction is stainless steel wetted rods with HDPE Floats. Plastic Calibration, HDPE Lock Nut, Duro Nitrile Gasket, Aluminum Bushing, Stainless Steel Rods, HDPE Floats. Other options are available for increased compatibility with various liquids. This gauge is a simple volume reading tool. The top of the red indicator is an indication of your approximate fuel level in your tank. Once installed, you simply view the calibration to monitor your tank level. Indicator is calibrated in eighths of a tank on one side, and quarters of a tank on the other.
- Quantity Qty Price
- 1 $98.690 ea.
- Pallet Pack: 100 ea.
Related Products
| Product | Price | Qty | Request |
|---|---|---|---|
 At-A-Glance™ Remote Mount Audible Gauge Alarm 26BRMA is the At-A-Glance™ audible fill alarm that mounts remotely to the gauge for a Drum or IBC Tank. This item can provide High Liquid Level Alarms, Overfill Tank Alarm, Leak Detection Alarm, Low Level Alarm, and Interstitial Alarms. Attain a visual i |
| | |
 At-A-Glance™ Direct Mount Audible & Flashing Light Gauge Alarm 19BXF4 is the At-A-Glance™ audible and flashing light feature alarm with a time out feature, that mounts directly to the gauge for a Drum or IBC Tank. This item can provide High Liquid Level Alarms, Overfill Tank Alarm, Leak Detection Alarm, Low Level Al |
| | |
 At-A-Glance™ Direct Mount Flashing Light Gauge Alarm 19BXF1 is the At-A-Glance™ flashing light feature (no audible) alarm that mounts directly to the gauge for a Drum or IBC Tank. This item can provide High Liquid Level Alarms, Overfill Tank Alarm, Leak Detection Alarm, Low Level Alarm, and Interstitial Al |
| | |
 At-A-Glance™ Direct Mount Audible Gauge Alarm 19BXF3 is the At-A-Glance™ audible fill alarm that mounts directly to the gauge for a Drum or IBC Tank. This item can provide High Liquid Level Alarms, Overfill Tank Alarm, Leak Detection Alarm, Low Level Alarm, and Interstitial Alarms. Attain a visual i |
| | |
 LED At-A-Glance™ Remote Gauge Display 19BLED is the LED At-A-Glance™ gauge system is an electronic remote read that accurately and reliably measures the fuel level in your fuel tank. It will transmit and display the level information to a wired LED display located in a convenient location on |
| | |
 At-A-Glance™ Remote Mount Flashing Light Gauge Alarm, Dry Contacts 19BXF7 is the At-A-Glance™ flashing light (no audible) fill alarm that mounts remotely to the gauge for a Drum or IBC Tank. This item can provide High Liquid Level Alarms, Overfill Tank Alarm, Leak Detection Alarm, Low Level Alarm, and Interstitial Alarm |
| | |
 At-A-Glance™ Direct Mount Audible & Flashing Light Gauge Alarm, Dry Contacts 19BXF5 is the At-A-Glance™ audible and flashing light feature alarm with a time out feature, that mounts directly to the gauge for a Drum or IBC Tank and has Dry Contacts. This item can provide High Liquid Level Alarms, Overfill Tank Alarm, Leak Detectio |
| | |
 At-A-Glance™ Direct Mount Flashing Light Gauge Alarm, Dry Contacts 19BFX5 is the At-A-Glance™ flashing light feature (no audible) alarm that mounts directly to the gauge for a Drum or IBC Tank. This item can provide High Liquid Level Alarms, Overfill Tank Alarm, Leak Detection Alarm, Low Level Alarm, and Interstitial Al |
| | |
 At-A-Glance™ Remote Mount Audible & Flashing Light Gauge Alarm 19BXE4 is the At-A-Glance™ flashing light and audible fill alarm with time-out, that mounts remotely to the gauge for a Drum or IBC Tank. This item can provide High Liquid Level Alarms, Overfill Tank Alarm, Leak Detection Alarm, Low Level Alarm and Inter |
| | |
 At-A-Glance™ Remote Mount Flashing Light Gauge Alarm 19BXF6 is the At-A-Glance™ flashing light (no audible) fill alarm that mounts remotely to the gauge for a Drum or IBC Tank. This item can provide High Liquid Level Alarms, Overfill Tank Alarm, Leak Detection Alarm, Low Level Alarm, and Interstitial Alarm |
| |
- Specifications
- The At-A-Glance™ Type D Liquid Level Gauge is a reliable, swing arm type tank gauge used for measuring all types of liquid levels. This sight gauges simple mechanical design promotes durability, minimal upkeep, quick installation, and easy/inexpensive repairs. This liquid level gauge is custom made to fit your tank. We can accommodate any size tank from 6 inches to 12 feet in depth, we can also account for double walls and pipe risers, and we offer multiple materials of construction to accommodate nearly any type of liquid.
Key benefits:- Material: Plastic Calibration, HDPE Lock Nut, Duro Nitrile Gasket, Aluminum Bushing, Stainless Steel Rods, HDPE Floats
- Easy to use
- Accurately measures the depth of liquid
Disclaimer:
This information has been provided as a general guide. It is the customer's responsibility to select the proper container for product and application compatibility.Please note, this item is excluded from online promotions.
Additional Information
More Information Gasket Nitrile (Buna-N) Pallet Pack 100 ea. Country of Manufacture United States Model D-2-65-S1 Tank Depth 65" - 550 Gallon IBC Opening Size 2" NPT Rod Material Stainless Steel Bushings Material Aluminum Float Material HDPE Calibration Plastic Calibration - Q & A
