Part # : 19BZ44

Table Top Composite Curing Temperature Controller w/Vacuum Kit, Universal Voltage

Part # : 19BZ44

Table Top Composite Curing Temperature Controller w/Vacuum Kit, Universal Voltage

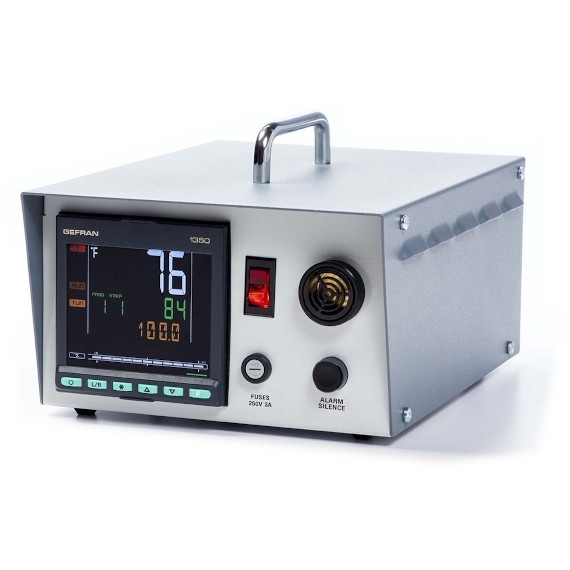

19BZ44 is a universal-voltage table top composite curing controller with vacuum kit that provides basic temperature control for composite curing applications. Used with composite curing heating blankets, controllers provide composite and metal bond repair for aircraft, automotive and marine equipment, or any challenging composite repair. Portable controller is lightweight, can be controlled automatically or manually, and incorporates both visual and audible alarms. Dual display shows set-point and actual temperature and features eight-segment ramp/soak control.
  • Quantity Qty Price
  • 1 $1,960.300 ea.
Shipping Estimates can be found on the Cart page once you add products.
  • Quantity Qty Price
  • 1 $1,960.300 ea.

Availability: 1-2 Weeks

Interested in larger quantities?

Request a Quote
Call Us: (630) 629-6600

Specifications
19BZ44 is a universal-voltage table top composite curing controller with vacuum kit that provides basic temperature control for composite curing applications. Used with composite curing heating blankets, controllers provide composite and metal bond repair for aircraft, automotive and marine equipment, or any challenging composite repair. Portable controller is lightweight, can be controlled automatically or manually, and incorporates both visual and audible alarms. Dual display shows set-point and actual temperature and features eight-segment ramp/soak control.

Key benefits:
  • Provides temperature control up to 400° F (204° C)
  • Features eight-segment ramp/soak control
  • Allows automatic tuning of PID parameters
  • 14 programmable alarm types
  • Accepts standard and mini Type J thermocouple connectors
  • Features sensor break protection
  • Controllers feature a NEMA L15-30 receptacle
  • 6' (1.8m) long input power cord
  • Made in the USA

Contents include:
  • Table top controller unit
  • One 20' Type J Thermocouple
  • One 10' heater output cord
  • One Venturi pump
  • One 10' (3m) vacuum hose
  • One vacuum feed-through

Disclaimer:

This information has been provided as a general guide. It is the customer's responsibility to select the proper container for product and application compatibility.

Additional Information

More Information
Dimensions 36" L x 16" W x 15" H
Case Dimensions 36" L x 16" W x 15" H
Weight 48 lbs.
Country of Manufacture United States
Manufacturer BriskHeat®
Model TT30D-S16-VACKIT
