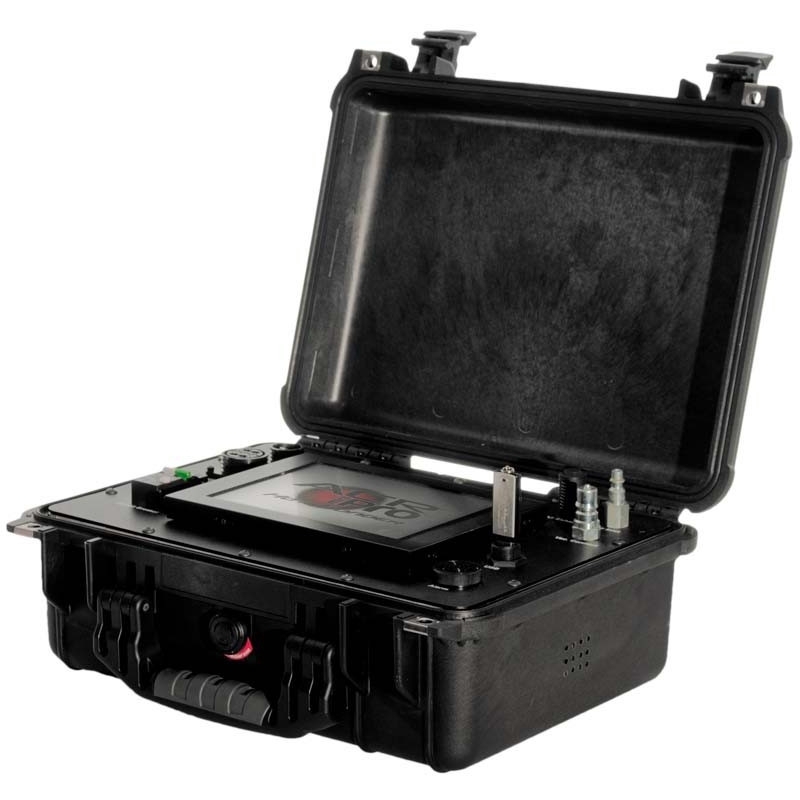

BriskHeat® Mini Composite Curing Hot Bonder, Single Zone, 120v

19BZ33 is a 120-volt single-zone hot bonder unit for controlling localized heat and vacuum sources to cure composite materials for manufacturing and repair applications. Used with maker's composite curing heating blankets, this lightweight, portable bonder unit provides composite and metal bond curing for equipment in the aviation, marine, automotive and construction industries. Unit features an 8.4" (213mm) full-color touch screen and keyboard interface that provides an easy-to-follow menu for quick three-step programming. Flexible system enables user to perform several operations in tandem and can store up to 30 programs. Unit includes a built-in vacuum venturi and 10 thermocouple sensors. System can be used for a variety of manufacturing and composite repair applications including debulk and cure resins, prepregs, adhesives, fibers and more. Built-in USB port allows transferring and archiving post-cure data history to spreadsheet and word processing programs for further analysis. Bonding unit is for use in dry environments.

Key benefits:

• Temperature controller cures up to 1400° F (760° C)
• 20 Amp capacity
• Incorporates a built-in vacuum venturi
• Retains history of prior 12 cures
• Input ground fault interrupter breaker protected
• Customizable post-cure analysis allows user to program data logging intervals from 1- to 99-minute increments
• Multiple language support
• Bonders feature a NEMA L15-30 receptacle
• Built-in USB port
• Made in the USA

Contents include:

• Mini hot bonder unit
• One 10' (3m) vacuum hose
• One vacuum bag feed-through
• One 10' (3m) input power cord
• One 5' (1.5m) heater output power cord
• USB flash disk
• 10 J-Type thermocouples
• 10 standard connector adapters for thermocouple receptacles
