Part # : 19BZ46

BriskHeat® Table Top Composite Curing Temperature Controller w/Built-In Thermocouple Input, 120v

Part # : 19BZ46

BriskHeat® Table Top Composite Curing Temperature Controller w/Built-In Thermocouple Input, 120v

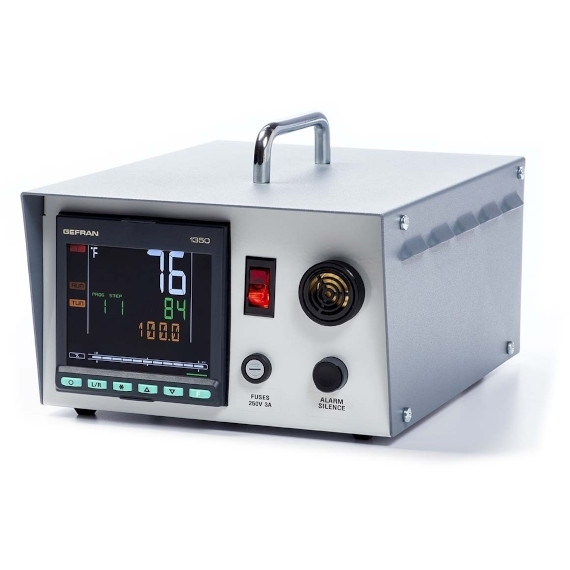

19BZ46 is a 120-volt table top composite curing controller that provides basic temperature control for composite curing applications. Used with composite curing heating blankets, controllers provide composite and metal bond curing for equipment in the aviation, marine, automotive and construction industries. Portable controller is lightweight, can be controlled automatically or manually, and incorporates both visual and audible alarms. Controller incorporates a built-in high limit thermocouple input. Dual display shows set-point and actual temperature. Unit features eight-segment ramp/soak control.
Product Specifications
  • Quantity Qty Price
  • 1 $2,741.610  ea.
  • 2 $2,696.660  ea.
  • 4 $2,584.280  ea.

Interested in larger quantities?

Request a Quote
Call Us: (630) 629-6600
Specifications
19BZ46 is a 120-volt table top composite curing controller that provides basic temperature control for composite curing applications. Used with composite curing heating blankets, controllers provide composite and metal bond curing for equipment in the aviation, marine, automotive and construction industries. Portable controller is lightweight, can be controlled automatically or manually, and incorporates both visual and audible alarms. Controller incorporates a built-in high limit thermocouple input. Dual display shows set-point and actual temperature. Unit features eight-segment ramp/soak control.

Key benefits:
  • Provides temperature control up to 400° F (204° C)
  • Features eight-segment ramp/soak control
  • Allows automatic tuning of PID parameters
  • 14 programmable alarm types
  • Accepts standard and mini Type J thermocouple connectors
  • Built-in high limit thermocouple input
  • Features sensor break protection
  • Controllers feature a NEMA L15-30 receptacle
  • 6' (1.8m) long input power cord
  • Made in the USA
Contents include:
  • Table top controller unit
  • One 20' Type J Thermocouple
  • One 10' heater output cord

Disclaimer:

This information has been provided as a general guide. It is the customer's responsibility to select the proper container for product and application compatibility.

Additional Information

More Information
Dimensions18" L x 12" W x 10" H
Case Dimensions18" L x 12" W x 10" H
Weight15 lbs.
Country of ManufactureUnited States
ManufacturerBriskHeat®
ModelTTQSD-S16
Q & A
Customer Questions
Can you ship internationally? Where are you located?
The Cary Company online ordering platform is only set up to ship within the United States. For international shipments, please contact us at 630.629.6600 or Sales@thecarycompany.com, and we will be happy to process your order. Our main warehouse and office are located in Addison, Ill. We also have warehouses in across the United States that you can see here. Thank you for choosing The Cary Company.
